| D371F46襯氟蝶閥 |
 |
| 詳細內容：
D371F46襯氟蝶閥主要零部件材料表
|
序號 |
零件名稱 |
灰鑄鐵 |
鑄鋼 |
不銹耐酸鑄鋼 |
超低碳不銹耐酸鑄鋼 |
|
Z |
C |
P |
R |
PL |
RL |
|
1 |
閥體/閥蓋 |
HT250 |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
|
2 |
蝶板 |
WCB |
35 |
CF8 |
CF8M |
CF3 |
CF3M |
|
3 |
閥桿 |
1Cr13 |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
00Cr18Ni10 |
000Cr17Ni14Mo2 |
|
4 |
襯里/閥座 |
PTFE(F4),PCTEF(F3),FEP(F46),PFA(可溶F4),PP,PO |
|
5 |
密封圈 |
FPM(氟橡膠) |
FPM(氟橡膠) |
|
6 |
彈性條(墊) |
Si(硅橡膠) |
Si(硅橡膠) |
|
7 |
調節定位座 |
0Cr18Ni9 |
0Cr18Ni9 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
00Cr18Ni10 |
00Cr17Ni14Mo2 |
|
8 |
緊固螺栓 |
35 |
35 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
|
9 |
螺母 |
45 |
45 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
|
10 |
操作手柄 |
ZL101 |

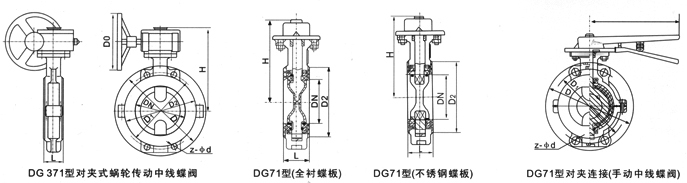

D371F46襯氟蝶閥主要外形和連接尺寸
|
公稱通經 |
L |
D |
D1 |
D2 |
f |
b |
Z-φd |
D |
D1 |
D2 |
f |
b |
Z-φd |
|
DN(mm) |
NPS(inch) |
PN1.0MPa |
PN1.6MPa |
|
40 |
3/2 |
33 |
145 |
110 |
85 |
3 |
18 |
4-φ18 |
145 |
110 |
85 |
3 |
18 |
4-φ18 |
|
50 |
2 |
43 |
160 |
125 |
100 |
3 |
20 |
4-φ18 |
160 |
125 |
100 |
3 |
20 |
4-φ18 |
|
65 |
5/2 |
46 |
180 |
145 |
120 |
3 |
20 |
4-φ18 |
180 |
145 |
120 |
3 |
20 |
4-φ18 |
|
80 |
3 |
46 |
195 |
160 |
135 |
3 |
22 |
4-φ18 |
195 |
160 |
135 |
3 |
22 |
8-φ18 |
|
100 |
4 |
52 |
215 |
180 |
155 |
3 |
22 |
8-φ18 |
215 |
180 |
155 |
3 |
24 |
8-φ18 |
|
125 |
5 |
56 |
245 |
210 |
185 |
3 |
24 |
8-φ18 |
245 |
210 |
185 |
3 |
26 |
8-φ18 |
|
150 |
6 |
56 |
280 |
240 |
210 |
3 |
24 |
8-φ23 |
280 |
240 |
210 |
3 |
28 |
8-φ18 |
|
200 |
8 |
60 |
335 |
295 |
265 |
3 |
26 |
8-φ23 |
335 |
295 |
265 |
3 |
30 |
12-φ23 |
|
250 |
10 |
68 |
390 |
350 |
320 |
3 |
28 |
12-φ23 |
405 |
355 |
320 |
3 |
32 |
12-φ25 |
|
300 |
12 |
78 |
440 |
400 |
368 |
3 |
28 |
12-φ23 |
460 |
410 |
375 |
4 |
34 |
12-φ25 |
|
350 |
14 |
78 |
500 |
460 |
428 |
4 |
30 |
16-φ23 |
520 |
470 |
435 |
4 |
38 |
16-φ25 |
|
400 |
16 |
102 |
565 |
515 |
482 |
4 |
32 |
16-φ25 |
580 |
525 |
485 |
4 |
40 |
16-φ30 |
|
450 |
18 |
114 |
615 |
565 |
532 |
4 |
32 |
20-φ25 |
640 |
585 |
545 |
4 |
44 |
20-φ30 |
|
500 |
20 |
127 |
670 |
620 |
585 |
4 |
34 |
20-φ25 |
705 |
650 |
608 |
4 |
46 |
20-φ34 |
|
600 |
24 |
154 |
780 |
725 |
685 |
5 |
36 |
20-φ30 |
840 |
770 |
718 |
5 |
54 |
20-φ41 |
|
700 |
28 |
165 |
895 |
840 |
800 |
5 |
40 |
24-φ30 |
910 |
840 |
788 |
5 |
54 |
24-φ41 |
|
800 |
32 |
190 |
1010 |
950 |
905 |
5 |
44 |
24-φ34 |
1020 |
950 |
898 |
5 |
54 |
24-φ41 |
|
900 |
36 |
203 |
1110 |
1050 |
1005 |
5 |
46 |
28-φ34 |
1120 |
1050 |
998 |
5 |
54 |
28-φ41 |
|
1000 |
40 |
216 |
1220 |
1160 |
1115 |
5 |
50 |
28-φ34 |
1255 |
1170 |
1110 |
5 |
60 |
28-φ48 |
|
1200 |
48 |
254 |
1450 |
1380 |
1325 |
5 |
56 |
32-φ41 |
|
|
|
|
|
| |
|
|
|
|
